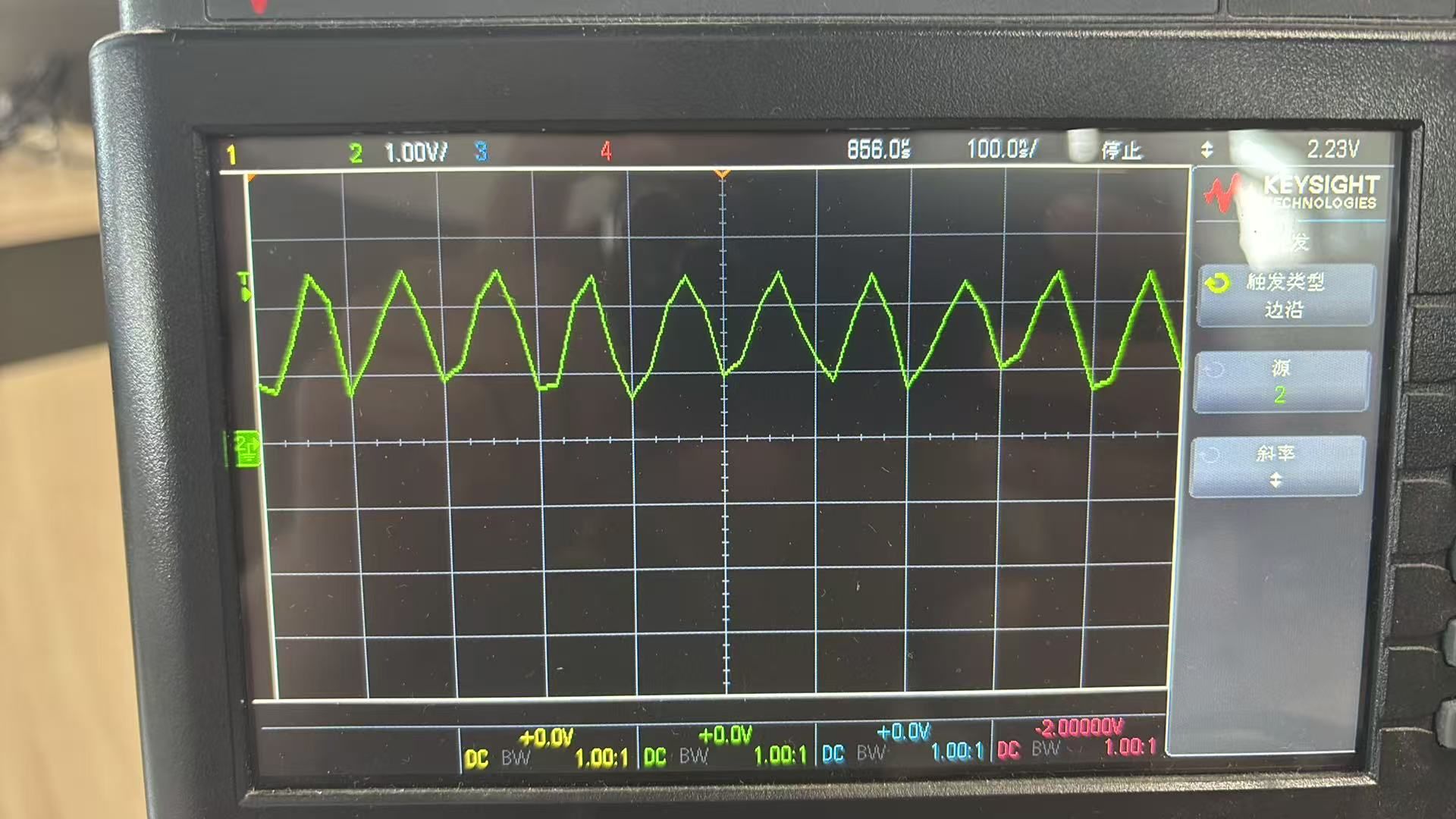

T113-S3 SPI clk 波形异常

[Jaron]

&spi1 {
clock-frequency = <100000000>;
pinctrl-0 = <&spi1_pins_a &spi1_pins_b>;
// pinctrl-1 = <&spi1_pins_c>;
// pinctrl-names = "default", "sleep";
pinctrl-names = "default";
spi_slave_mode = <0>;
spi1_cs_number = <1>;
spi1_cs_bitmap = <1>;

status = "okay";
debug=<0xFFFFFFFF>;
spi_oled@0 {
	// device_type = "spi_oled";
	compatible = "solomon,ssd1322";
	spi-max-frequency = <10000000>;
	reg = <0x0>;
	spi-cpha;
	spi-cpol;
    reset-gpios = <&pio PD 3 GPIO_ACTIVE_LOW>;
    dc-gpios = <&pio PD 4 GPIO_ACTIVE_HIGH>;
    width = <256>;
    height = <64>;
    buswidth = <8>;
    fps = <30>;
    rotate = <0>;
	status = "okay";
	debug=<0xFFFFFFFF>;
};

};
